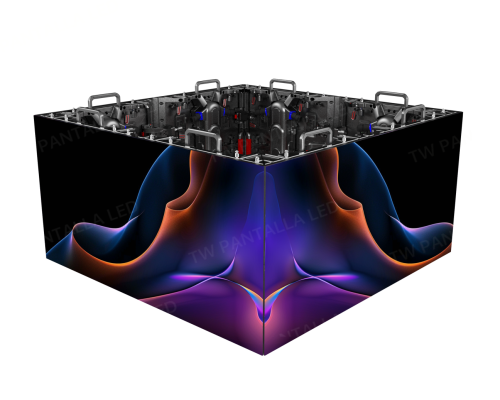

We have improved the TW-RF Series rental LED screen by adding two quick-lock devices on each side, ensuring a perfectly flat screen and allowing for speedy assembly. Additionally, anti-collision feet at the bottom provide extra protection against accidental falls. Both the TW-RF Series offer exceptional versatility with options for vertical, horizontal, and right-angle installations. We are excited for you to experience these fantastic features!
| Pixel Pitch (mm) | P2.976 | P3.91 | P3.91 | P3.91 | P4.81 |
| Model | TWRF-P2.976 | TWRF-P3.91-16S | TWRF-P3.91-8S | TWRF-P3.91-B | TWRF-P4.81 |
| Led Configuration | SMD1415 | SMD1921 | SMD1921 | SMD1921(black) | SMD1921 |
| Density (Pixels/㎡) | 262144 | 160000 | 147928 | 112896 | 65536 |
| Module Resolution (Pixel) | 84×84 | 64×64 | 64×64 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | ||||
| Driving Mode (Duty) | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 |
| Cabinet Size (mm) | 500×500 / 500×1000 | ||||
| Cabinet Weight (KG) | 7 / 13 | ||||
| Brightness (CD/㎡) | 4500 | 4800 | 6000 | 4000 | 4200 |
| Viewing Angle (°) | 140 | ||||
| Gray Grade (Bits) | 14 | ||||
| Operation Power | AC100-240V 50-60Hz | ||||
| Max. Power Consumption (W/㎡) | 720 | 560 | |||
| Avg. Power Consumption (W/㎡) | 240 | 190 | |||
| Frame Frequency (Hz) | ≥60 | ||||
| Refresh Frequency (Hz) | 3840~7680 | ||||
| Working Temperature (ºC) | -20～+60 | ||||
| Lifetime (Hours) | 100,000 | ||||
| Protection Grade | IP65(front), IP54(rear) | ||||
| Pixel Pitch (mm) | P1.953 | P2.6 | P2.976 | P3.91 | P4.81 |
| Model | TWRF-P1.953 i | TWRF-P2.6 i | TWRF-P2.976 i | TWRF-P3.91 i | TWRF-P4.81 i |
| Led Configuration | SMD1515 | SMD2020 | |||
| Density (Pixels/㎡) | 262,144 | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution (Pixel) | 128×128 | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | ||||
| Driving Mode (Duty) | 1/32 | 1/32 | 1/28 | 1/16 | 1/13 |
| Cabinet Size (mm) | 500×500 / 500×1000 | ||||
| Cabinet Weight (KG) | 6.5 / 12 | ||||
| Brightness (CD/㎡) | 800 | 750 | 800 | 800 | 700 |
| Viewing Angle (°) | 140 | ||||
| Gray Grade (Bits) | 14 | ||||
| Operation Power | AC100-240V 50-60Hz | ||||
| Max. Power Consumption (W/㎡) | 480 | 576 | 560 | ||
| Avg. Power Consumption (W/㎡) | 160 | 192 | 190 | ||
| Frame Frequency (Hz) | ≥60 | ||||
| Refresh Frequency (Hz) | 3840~7680 | ||||
| Working Temperature (ºC) | -20～+60 | ||||
| Lifetime (Hours) | 100,000 | ||||
| Protection Grade | IP31 | ||||
Ultra-Light
Contrast Ratio
Refresh Rate
Waterproof and Dustproof
TW-RF Series rental LED screen features fast locks on both sides for quick assembly and improved flatness.
Our precision curve lock solution simplifies the process of adjusting curved installations by providing accurate rotational control that is easy to use.
TW-RF Series LED display can be installed in either an inner or outer arc.
TW-RF Series 500×500 and 500×1000 cabinet can be installed together for greater versatility.
Designed for right-angle installation, this series offers convenience and flexibility. Its robust construction and adaptable design make it ideal for any setup.
TW-RF Series enables front-side service for LED displays. The magnetic LED module can be easily disassembled and maintained with front-end tools, saving time and money.
The indoor rental LED display features a hollow power box design, facilitating easy maintenance and excellent heat dissipation.
TW-RF Series LED sign includes corner protectors to prevent damage and ensure secure transport and installation.
TW-RF Series LED display cabinet weighs just 7 kg, making it easy for one person to install, disassemble, and maintain.
With a suspended LED display, you can elevate your space and capture the attention of your audience. Maximize visual impact with a sleek and modern aesthetic.
Effortlessly enhance your space with wall mount installation capability appropriate for various environments.
Providing more versatility for LED projects, this H-shaped LED installation is portable and easy to install.
You can seamlessly integrate your display into any space, whether it’s a corner or a custom layout with 90° right angle support.
This LED display effortlessly captures attention with its simple structure, delivering stunning visuals.
