Poster LED screens are commonly found in shopping malls, fashion stores, exhibitions, hotel lobbies, and bank lobbies. Their simple structure and easy operation make them ideal for advertising, information dissemination, and product displays.

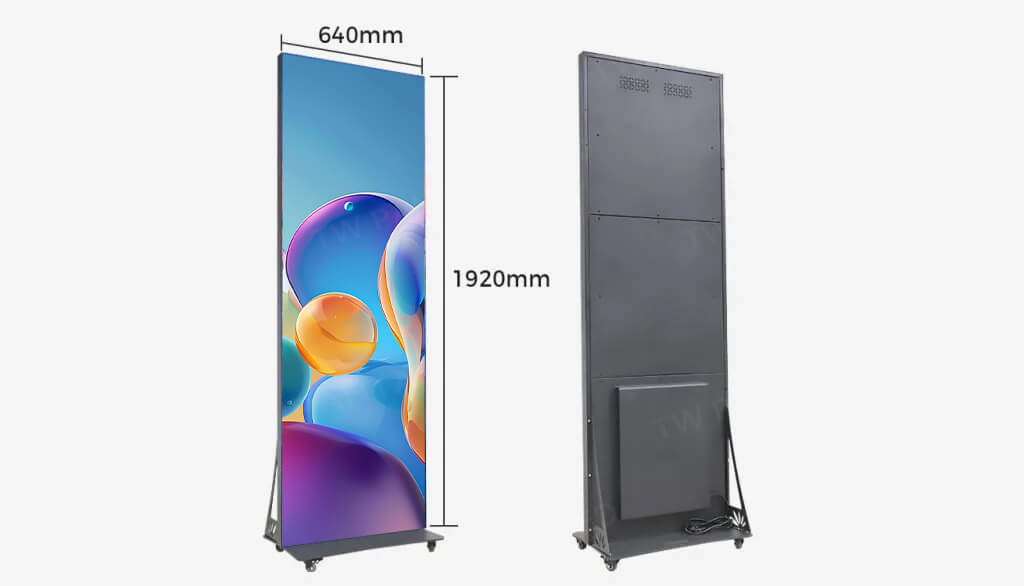

TW1920iP2 Series cabinet size is 640x1920mm.Suitable for all 320x160mm LED display modules.

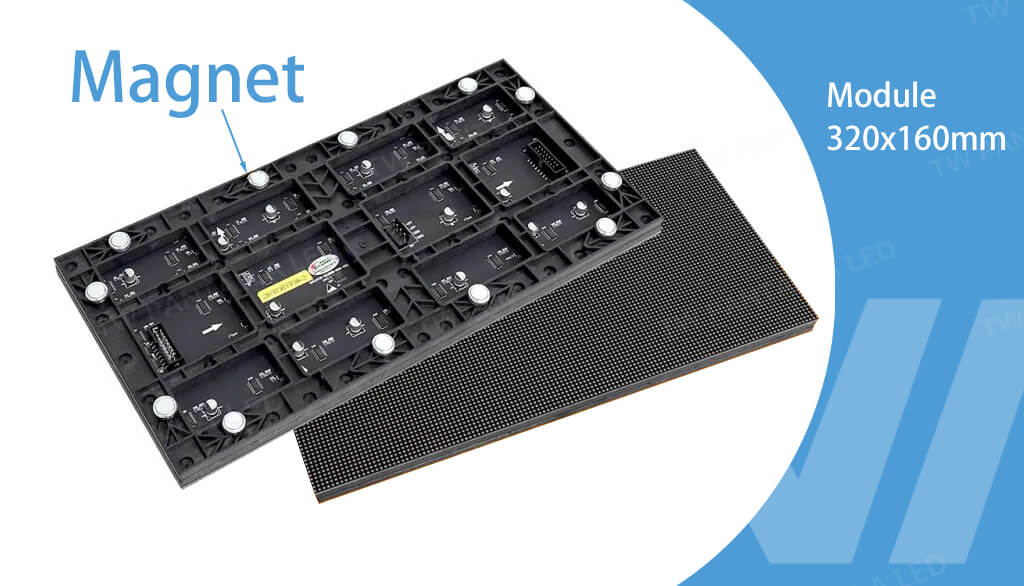

TW1920iP2 Series LED display with standard size panel: 320x160mm. Standard led screens are quick to assemble and maintain.
Changing the pixel spacing is also very convenient, just change the modules because they have the same module size and structure.

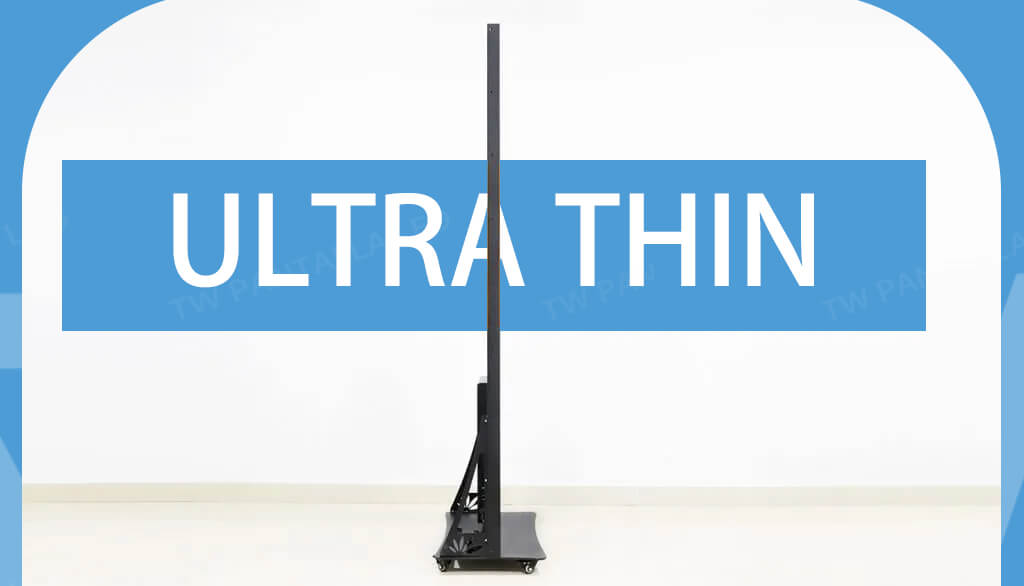

TW1920iP2 Series cabinet Standard Size series LED display with ultra thin cabinet design, the thickness is 60mm.
Die-cast aluminum cabinet design light and easy to transport, good flatness and seamless.

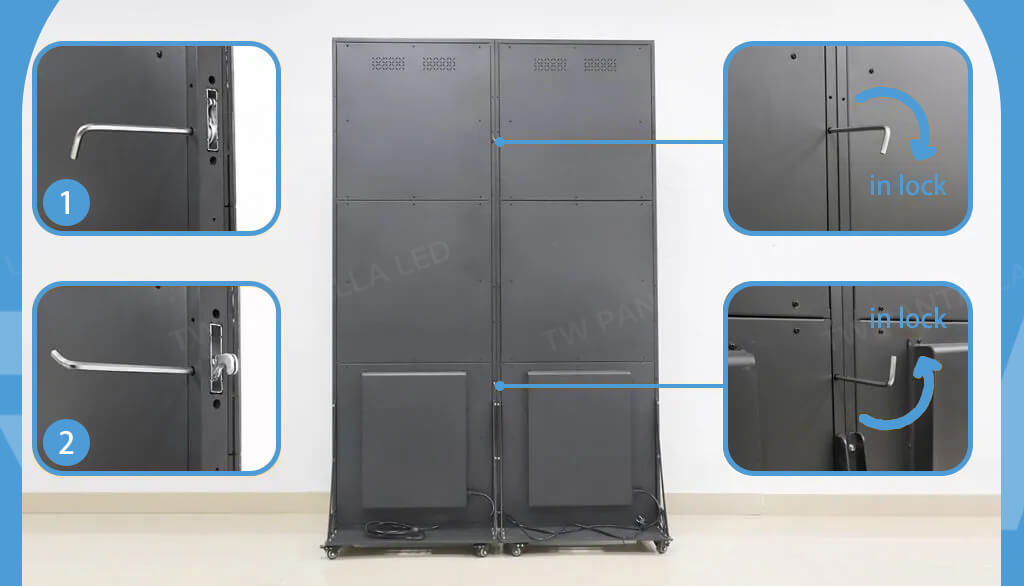

The TW1920iP2 series poster screen is equipped with a link lock. After locking,
multiple screens can be seamlessly cascaded to achieve large-screen display.
The poster LED wall can be played as a large screen, or it can be played alone.

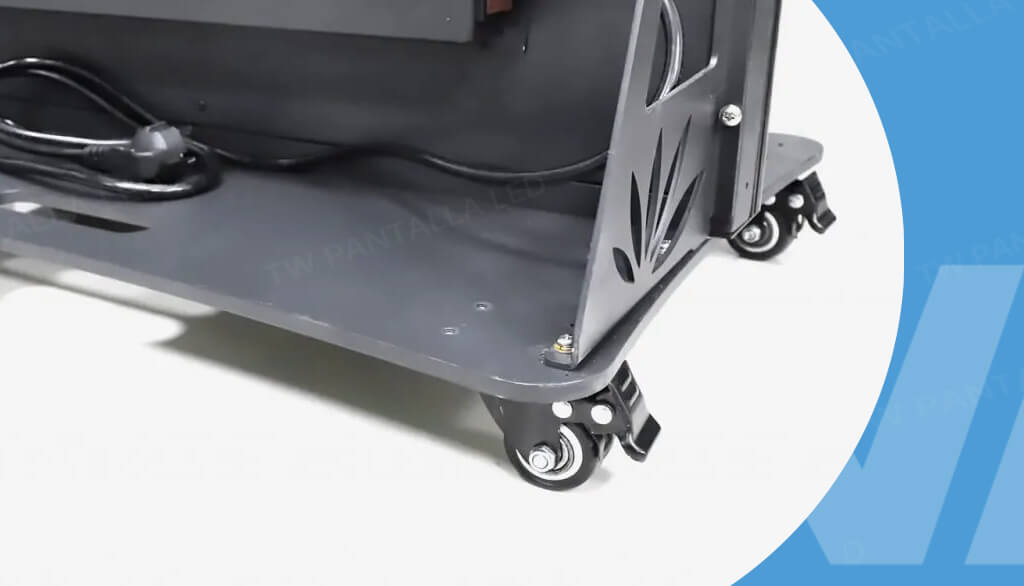

This poster LED screen base comes with 4 wheels that allow the poster led screen to rotate freely and allow free movement in all directions.
TW1920iP2 Series poster LED Screen support Synchronous & asynchronous control system,the LED screen content can be
updated via ipad, phone, PC computer, or notebook.Real time play, Cross-platform publish. Support USB or WIFI,
Support operation by IOS or Android devices.Support built-in media player to store and play content.
Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
EA1920iP Series poster LED display support Multi-installation ways,
The product is suitable for bracket standing installation, base-standing installation, lifting or hanging installation,
multi cascade installation and creative installation. no need steel structure to install, convenient and quickly.
| Pixel Pitch (mm) | P1.86 | P2 | P2.5 |
| Model | TW1920iP2-P1.86 | TW1920iP2-P2 | TW1920iP2-P2.5 |
| Pixel Configuration | SMD1515 | SMD1515 | SMD1515 |
| Density (Pixels/㎡) | 288,906 | 250,000 | 160,000 |
| Module Resolution (Pixel) | 172×86 | 160×80 | 128×64 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 |
| Driving Mode (Duty) | 1/43 | 1/40 | 1/32 |
| Cabinet Size (mm) | 640×1920 | 640×1920 | 640×1920 |
| Cabinet Weight (KG) | 40 | 40 | 40 |
| Brightness (CD/㎡) | 600 | 700 | 800 |
| Viewing Angle (°) | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 580 | 439 | 457 |
| Avg. Power Consumption (W/㎡) | 195 | 150 | 153 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3840 | 3840 | 1920/3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 |
With a suspended LED display, you can elevate your space and capture the attention of your audience. Maximize visual impact with a sleek and modern aesthetic.
Effortlessly enhance your space with wall mount installation capability appropriate for various environments.
Providing more versatility for LED projects, this H-shaped LED installation is portable and easy to install.
You can seamlessly integrate your display into any space, whether it’s a corner or a custom layout with 90° right angle support.
This LED display effortlessly captures attention with its simple structure, delivering stunning visuals.
