TW1920iP3 indoor poster LED display has a simple structure and is easy to operate. It is used for advertising, information release, and product display.
The borderless design of TW1920iP3 indoor poster LED display brings an immersive and broad field of view.

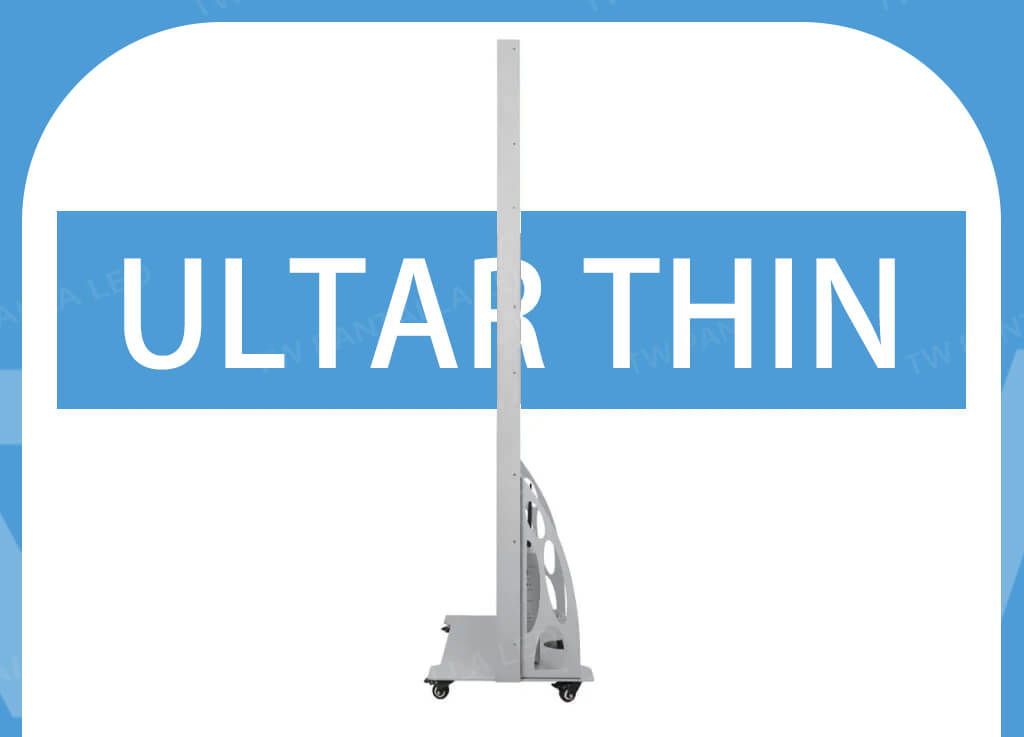

The thickness of TW1920iP3 LED display is only 60mm, very thin and light, and the weight is only 40kg.

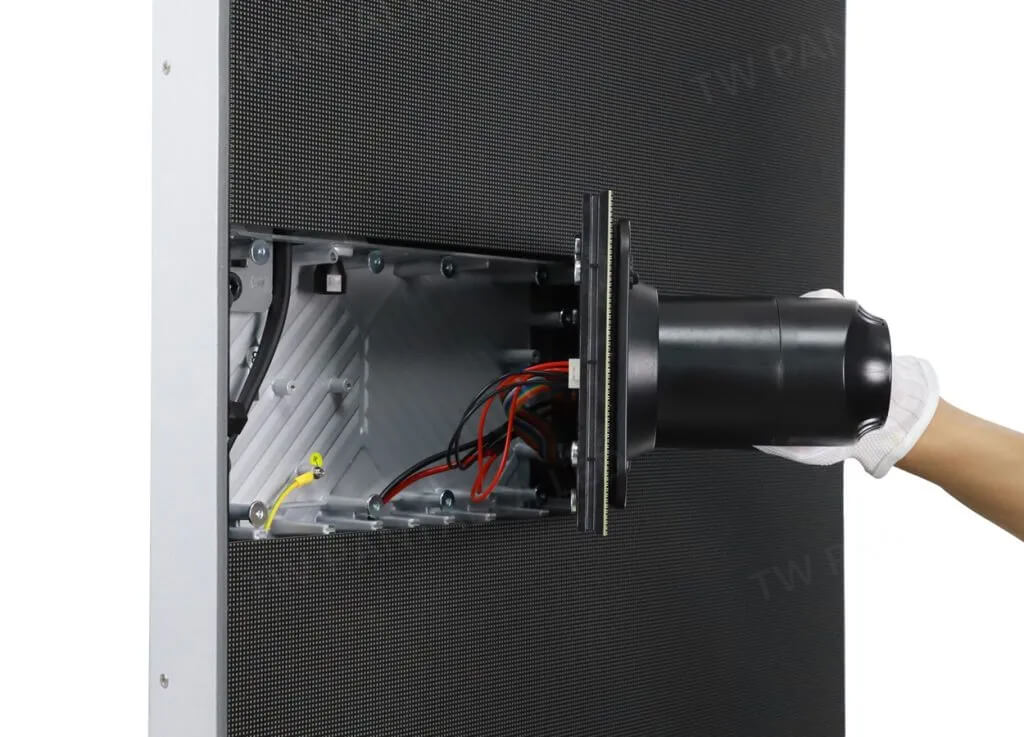

The full front maintenance design of TW1920iP3 indoor poster LED display allows for easy maintenance of the LED module from the front.

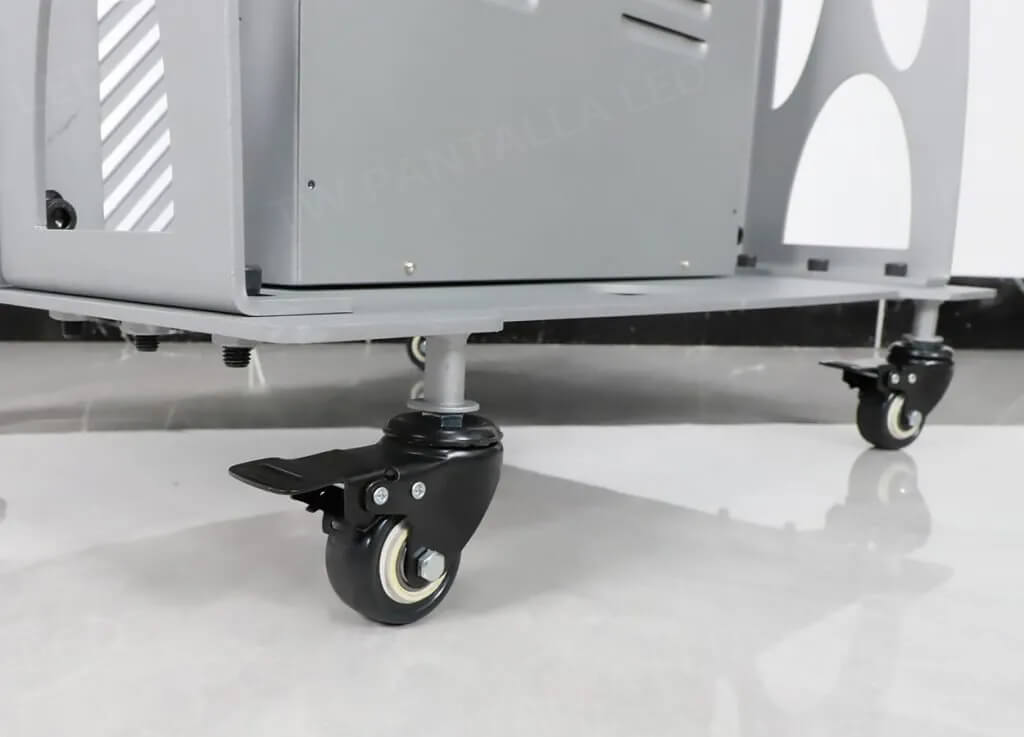

TW1920iP3 indoor poster LED screen base comes with 4 wheels that allow the poster led screen to rotate freely and allow free movement in all directions.

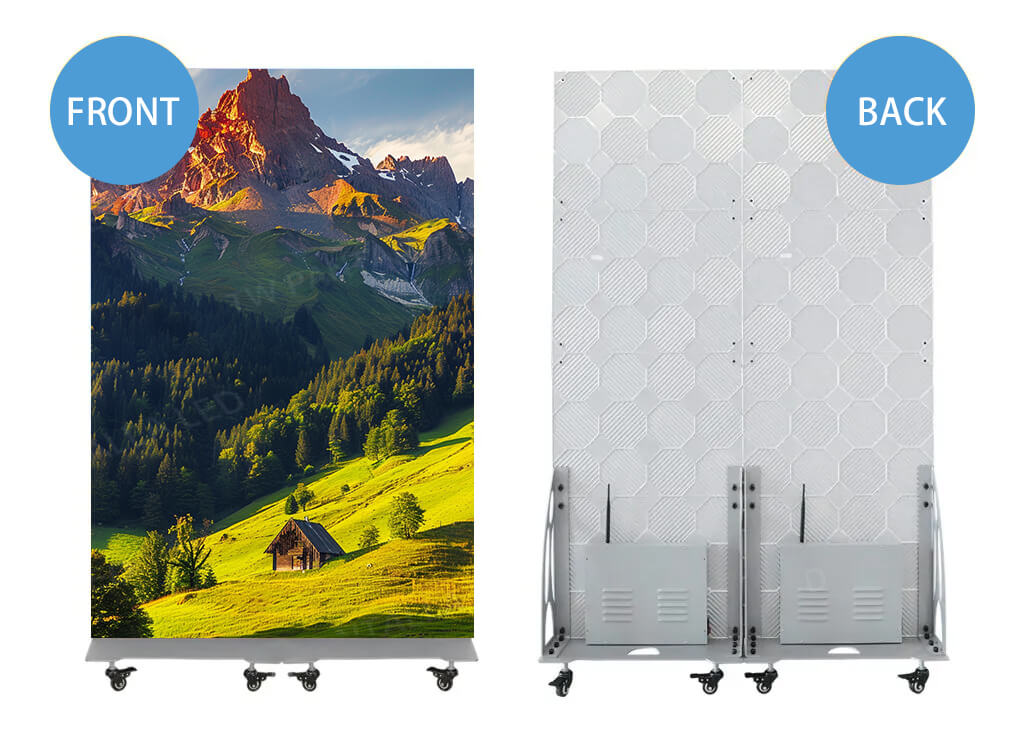

TW1920iP3 series poster screen can realize large-screen display. The poster LED wall can be played as a large screen or individually.

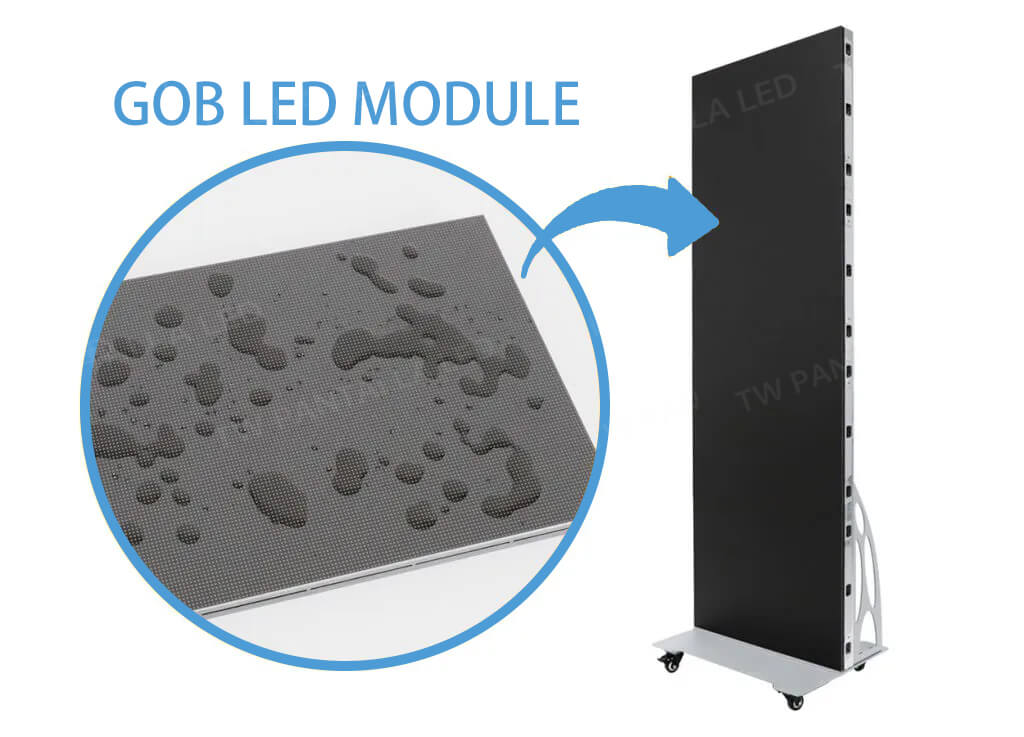

TW1920iP3 series LED poster display can choose 320x160mm GOB module, the surface of the module is dustproof and waterproof, and the borderless design further enhances the overall aesthetics of the screen.

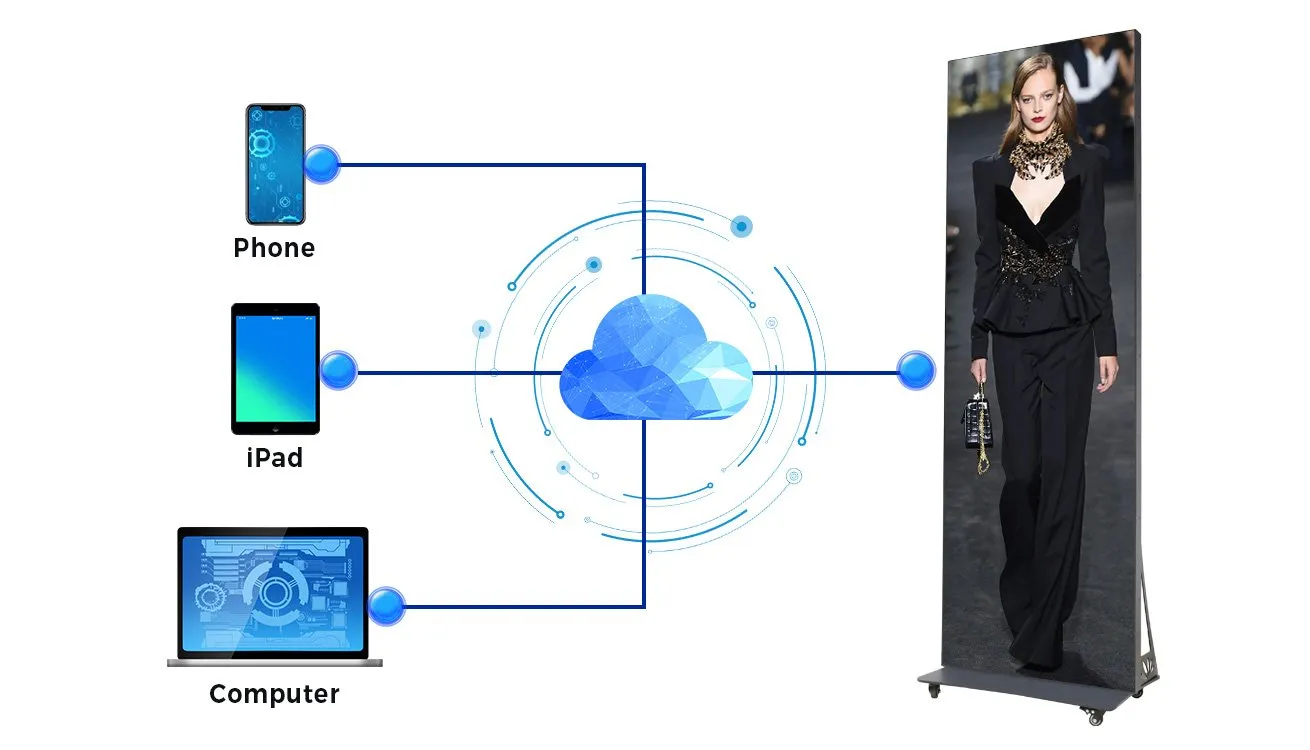

LED screen content can be updated via iPad, mobile phone, PC or laptop. Play in real time and publish across platforms. Supports USB or WIFI, supports IOS or Android device operation.
TW1920iP3 indoor poster LED screen is widely used as posters in shopping malls, fashion stores, exhibitions, hotel lobbies and bank lobbies.
| Pixel Pitch (mm) | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
| Model | TW1920iP3-P1.25 | TW1920iP3-P1.53 | TW1920iP3-P1.86 | TW1920iP3-P2 | TW1920iP3-P2.5 |
| Pixel Configuration | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
| Density (Pixels/㎡) | 640,000 | 422,500 | 288,906 | 250,000 | 160,000 |
| Module Resolution (Pixel) | 256×128 | 208×104 | 172×86 | 160×80 | 128×64 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Driving Mode (Duty) | 1/64 | 1/52 | 1/43 | 1/40 | 1/32 |
| Cabinet Size (mm) | 640×1920 | 640×1920 | 640×1920 | 640×1920 | 640×1920 |
| Cabinet Weight (KG) | 40 | 40 | 40 | 40 | 40 |
| Brightness (CD/㎡) | 600 | 600 | 600 | 700 | 800 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 580 | 580 | 580 | 439 | 457 |
| Avg. Power Consumption (W/㎡) | 195 | 195 | 195 | 150 | 153 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3840 | 3840 | 3840 | 3840 | 1920/3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
| Pixel Pitch (mm) | P1.25 | P1.53 | P1.86 | P2 | P2.5 |
| Model | TW1920iP3-P1.25 | TW1920iP3-P1.53 | TW1920iP3-P1.86 | TW1920iP3-P2 | TW1920iP3-P2.5 |
| Pixel Configuration | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
| Density (Pixels/㎡) | 640,000 | 422,500 | 288,906 | 250,000 | 160,000 |
| Module Resolution (Pixel) | 256×128 | 208×104 | 172×86 | 160×80 | 128×64 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 |
| Driving Mode (Duty) | 1/64 | 1/52 | 1/43 | 1/40 | 1/32 |
| Cabinet Size (mm) | 640×1920 | 640×1920 | 640×1920 | 640×1920 | 640×1920 |
| Cabinet Weight (KG) | 37 | 37 | 37 | 37 | 37 |
| Brightness (CD/㎡) | 600 | 600 | 600 | 700 | 800 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 580 | 580 | 580 | 439 | 457 |
| Avg. Power Consumption (W/㎡) | 195 | 195 | 195 | 150 | 153 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3840 | 3840 | 3840 | 3840 | 1920/3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP31 | IP31 | IP31 | IP31 | IP31 |
With a suspended LED display, you can elevate your space and capture the attention of your audience. Maximize visual impact with a sleek and modern aesthetic.
Effortlessly enhance your space with wall mount installation capability appropriate for various environments.
Providing more versatility for LED projects, this H-shaped LED installation is portable and easy to install.
You can seamlessly integrate your display into any space, whether it’s a corner or a custom layout with 90° right angle support.
This LED display effortlessly captures attention with its simple structure, delivering stunning visuals.
