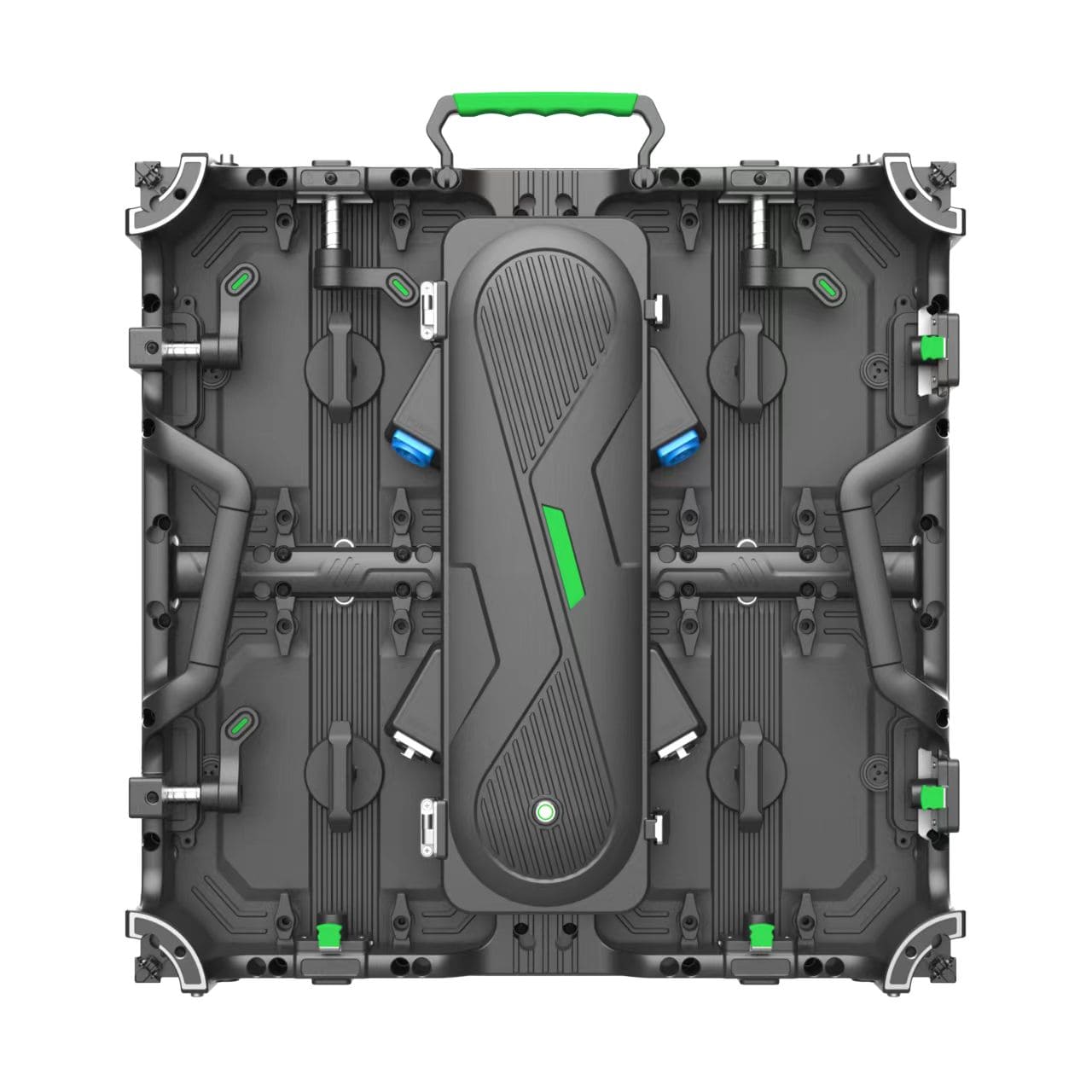

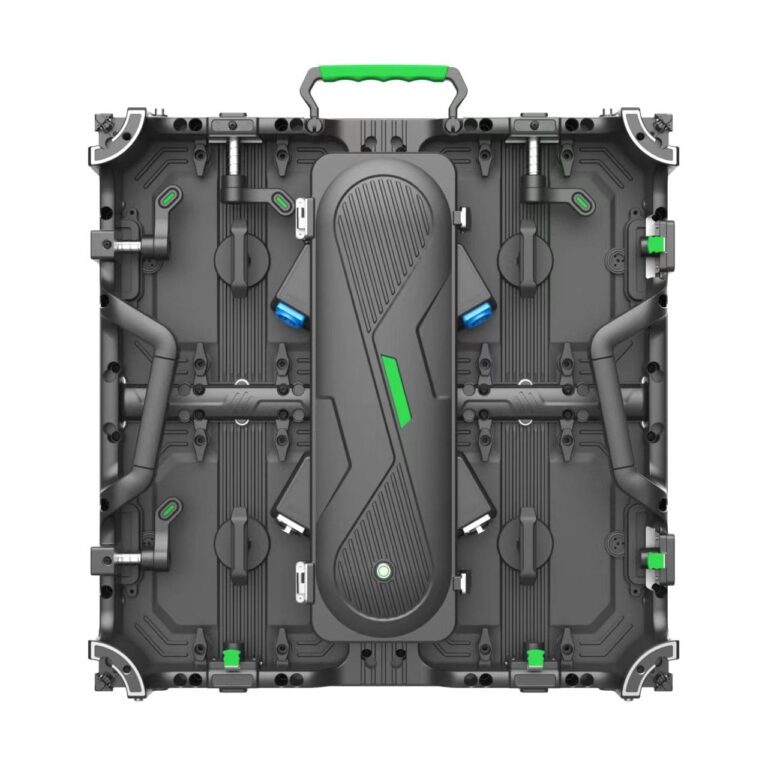

The TWR500E Series rental LED display is engineered for maximum versatility and creative use.
With its lightweight die-cast aluminum frame and modular 500×500 mm design, it supports multiple setups—from flat walls to curved or circular LED structures.
Its up-to-15° adjustable curvature allows seamless visual creativity for concerts, trade shows, TV studios, and architectural displays.
Designed for both indoor and outdoor environments, the TWR500E provides exceptional color uniformity, durability, and installation flexibility, making it the ideal choice for professional rental applications.
| Pixel Pitch (mm) | P2.604 | P2.97 | P3.91 | P4.81 |
| Model | TWR500E-P2.604 | TWR500E-P2.97 | TWR500E-P3.91 | TWR500E-P4.81 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Density (Pixels/㎡) | 147,465 | 113,367 | 65,410 | 43,222 |
| Module Resolution (Pixel) | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/28 | 1/21 | 1/16 or 1/8 | 1/13 or 1/7 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 12 | 12 | 12 | 12 |
| Brightness (CD/㎡) | 3500-4500 | 4000-4500 | 3800-5000 | 3800-5000 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 720 | 720 | 720 | 560 |
| Avg. Power Consumption (W/㎡) | 240 | 240 | 240 | 190 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3,840 | 3,840 | 3,840 | 3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) | IP65(front), IP54(rear) |
| Pixel Pitch (mm) | P1.5625 | P1.95 | P2.604 | P2.97 | P3.91 |
| Model | TWR500E-P1.5625 | TWR500E-P1.95 | TWR500E-P2.604 | TWR500E-P2.97 | TWR500E-P3.91 |
| Pixel Configuration | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Density (Pixels/㎡) | 409,600 | 262,144 | 147,465 | 112,896 | 65,536 |
| Module Resolution (Pixel) | 160×160 | 128×128 | 96×96 | 84×84 | 64×64 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Driving Mode (Duty) | 1/40 | 1/32 | 1/32 | 1/28 | 1/16 |
| Cabinet Size (mm) | 500×500 | 500×500 | 500×500 | 500×500 | 500×500 |
| Cabinet Weight (KG) | 12 | 12 | 12 | 12 | 12 |
| Brightness (CD/㎡) | 600-800 | 600-800 | 600-800 | 600-800 | 600-800 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 480 | 480 | 480 | 480 | 576 |
| Avg. Power Consumption (W/㎡) | 160 | 160 | 160 | 160 | 192 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 3,840 | 3,840 | 3,840 | 3,840 | 1,920/3,840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Protection Grade | IP35 | IP35 | IP35 | IP35 | IP35 |
Ultra-Light
Contrast Ratio
Refresh Rate
Waterproof and Dustproof
The TWR500E rental LED display adopts dual quick-lock mechanisms on both sides, enabling tool-free assembly within seconds. This design ensures tight cabinet connection, perfect flatness, and time-saving setup for live events and exhibitions.

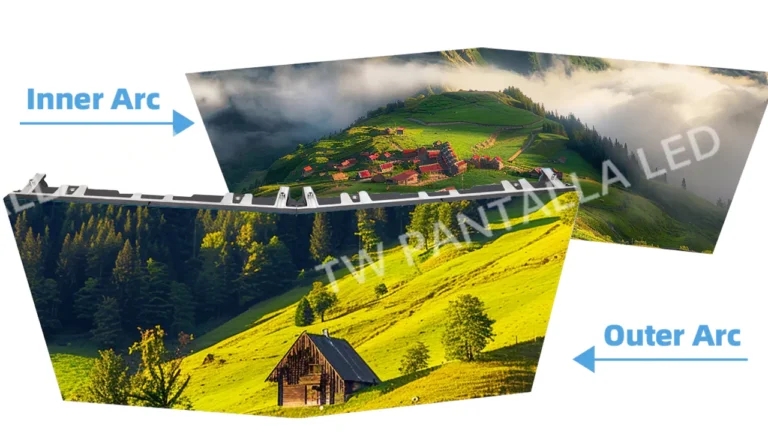

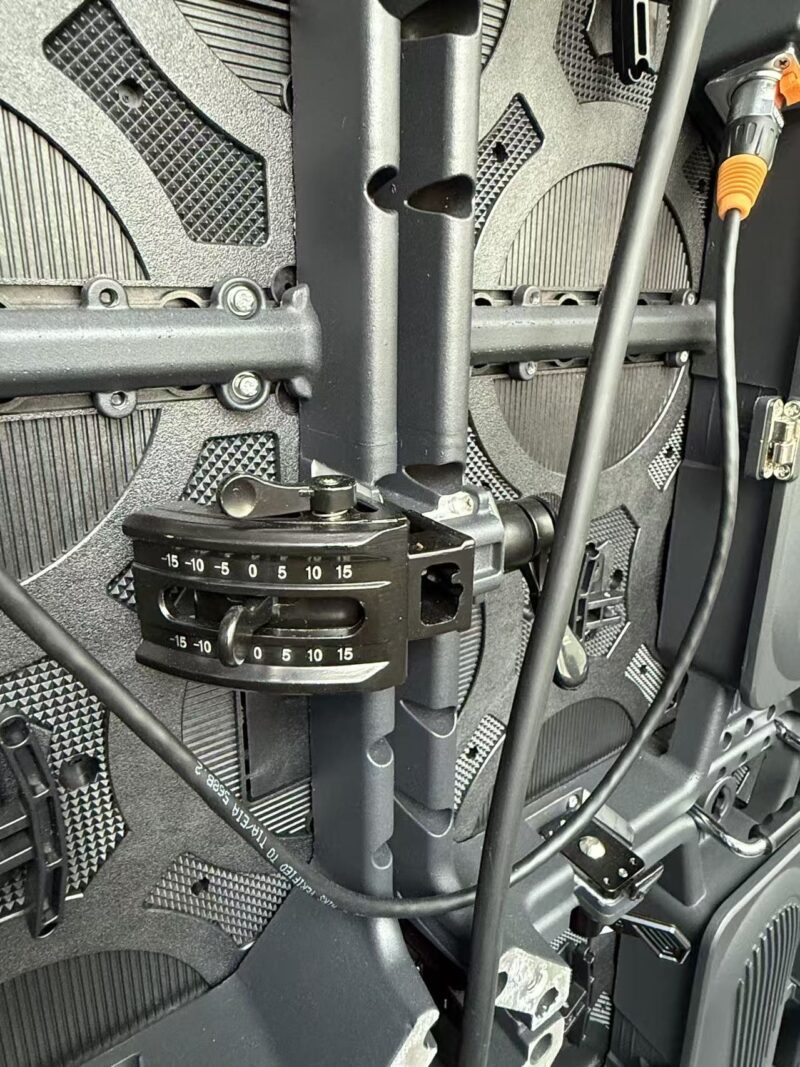

The TWR500E’s adjustable curve-lock system provides accurate angle control for inner or outer arc configurations. With a user-friendly locking knob, installers can easily fine-tune panel curvature while maintaining perfect screen alignment and stability.
Thanks to its 15° adjustable bending range, the TWR500E LED panel allows designers to create dynamic curved walls, circular LED screens, and immersive stage backgrounds. It’s the perfect solution for concerts, trade shows, and creative LED installations where visual impact matters.
The TWR500E and TWR1000E rental LED panels can be perfectly combined, offering seamless alignment and modular compatibility.
This flexible splicing system allows creative configurations and quick assembly for both small and large LED video wall setups.
Engineered for 90° corner installation, the TWR500E series supports cube, L-shaped, or architectural LED structures.
Its reinforced aluminum frame ensures stability and durability, making it ideal for innovative stage and retail applications.
With the front-service design, the TWR500E LED display allows easy access to modules and power units from the front side.
The magnetic LED modules can be quickly removed or replaced using simple tools — minimizing downtime and reducing maintenance costs.
The hollow cabinet design improves air circulation and heat dissipation, extending the lifespan of internal components.
It also makes cable routing and maintenance faster, ensuring stable operation during long-term use.
Featuring a 7680 Hz refresh rate and 16-bit grayscale performance, the TWR500E series delivers smooth, flicker-free visuals with excellent color depth — ideal for live broadcast and high-end stage applications.
The TWR500E LED display offers wide horizontal and vertical viewing angles, ensuring that images stay clear, bright, and consistent from any perspective — perfect for large audiences and open venues.
Enhance your stage or exhibition with suspended LED display installation, perfect for maximizing visibility and audience engagement.
The TWR500E rental LED panels create a sleek, floating visual effect, ideal for events, concerts, and high-end venues requiring a modern and lightweight structure.
The TWR500E series LED display supports seamless wall-mounting, enabling integration into retail stores, control rooms, or fixed indoor installations.
Its ultra-thin profile and modular 500×500 mm design make it an excellent solution for permanent LED video wall applications.
Designed for mobility and creativity, the H-shaped frame installation provides easy assembly, fast setup, and strong stability for temporary LED structures.
Perfect for roadshows, conferences, or touring events where quick installation and portability are essential.
With 90° angle connection capability, the TWR500E LED panels allow for corner or cube-shaped LED displays.
Ideal for 3D visual installations, retail corners, and architectural LED structures that demand a clean and immersive viewing experience.
This freestanding LED setup offers flexibility for shopping malls, exhibitions, and TV studios, providing stable support and stunning front-facing visuals.
It’s the perfect option for environments where wall or hanging installation isn’t feasible, combining simplicity with strong visual impact.
